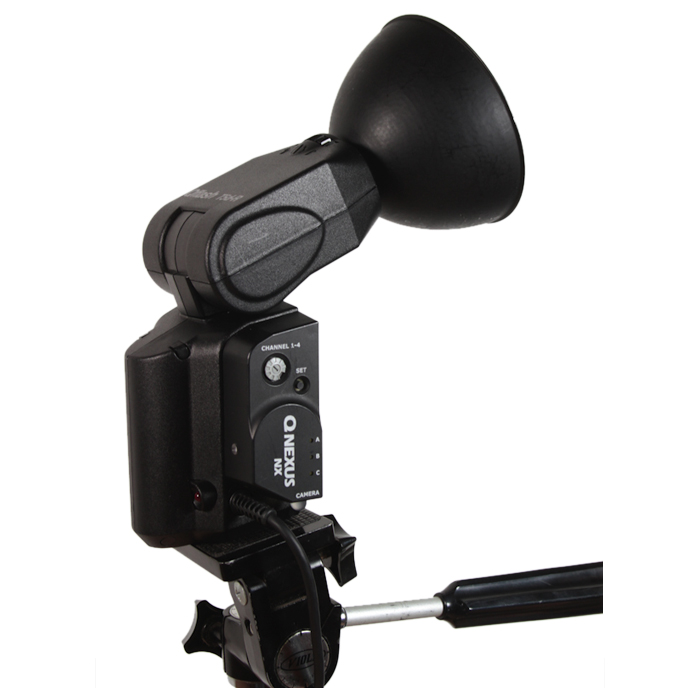

Quantum Qflash Head (X5DR)

Out of Stock
Key Features
  • 200-400W/s
  • Description
  • Specifications

The Quantum Q Flash Model X5DR can be powered by the Qpaq-X system. It can also be powered by a Lumedyne or Norman pack, with appropriate adapters, for up to 400 watt/seconds of auto-flash. Quantum Instruments X5DR TTL Flash Head is a completely automated flash head with 4 user selectable operating modes. Flash control is either Automatic, Manual, Stroboscopic, or TTL (with optional adapters for TTL camera control)

Note: The X5DR cannot be powered by the Quantum Turbo Battery --
only the Q-Paq System, Norman 400B, or Lumedyne Powerpacks with Batteries.
Start with the Quantum PX Command Module. Build your system up to 800 watt-seconds (to power 2- X5DR's @ 400 w/s each) with 200 watt-second PXC modules, then snap on a High Capacity PB1 or Compact PB2 Battery, all available separately.

For Full TTL Operation, a TTL compatible camera and a Quantum TTL Module Cord are required
For an up-to-date list of TTL "D" series Adapters and compatible cameras, see manufacturer's web site.

TTL Mode
The X5DR series, used with FreeXwire, supports wireless control of all dedicated camera-flash functions -- including Manual, TTL, Auto, Auto-fill and TTL-Ratio -- up to 500 feet away.

Multi-Brand Camera-Compatible
Qflash X5DR blends seamlessly with Canon, Nikon and other professional digital camera systems, using Quantum's proprietary QTTL adapters. In some cases, it even provides capabilities a camera system may not support, such as wireless remote Fill-Flash.

Capable of 200/400/600/800 w/s. Use add-on 200 w/s modules and get up to 800 w/s of power to power 2 heads -- 400 w/s per flash head maximum .

Automatic Mode
Covers a 9 f/stop range in 1/3 stop increments

Manual Mode
Power may be adjusted from full to half to 1/64 power in 1/3 stop increments

Stroboscopic Mode
May be adjusted for power, number, and frequency of rapid firing for special effects

Program Mode
Store up to 4 favorite settings, switch between them at the push of a button

Exposure Confirmation
Visual: Displays "OK"
Audible: Beeps once for OK, or beeps 3 times with an "UNDR" or "OVER" in the display, indicating which way to adjust the Q Flash.
The beeping is switchable, or heard with the included earphone

Changeable Reflector
May be used with included parabolic, or optional QF63 telephoto reflector
May be used bare bulb, or with silver or gold bare bulb enhancers

Angle Adjustment
The head swivels and tilts for bounce flash capability, with one button control.

Easy to Mount
Mounts on a camera bracket, light stand or tripod with its 1/4"-20 threaded bottom

 Maximum Watt/Seconds  400, with optional power pack and battery
 User Replaceable Flashtube  Yes (QF32 or QF32UV)
 Changeable Reflector  Yes
 Circuit Protection  Yes
 Cable Length  6'
 Modeling Light Wattage  35W (QF33)
 Modeling Light On/Off Switch  Yes
 Protective Glass Dome  Yes
 Fan Cooled  No
 Dimensions  3.2 X 3.5 X 6.5" (8.1 x 8.9 x 16.5 cm)
 Weight  1 lb (.45 kg)
